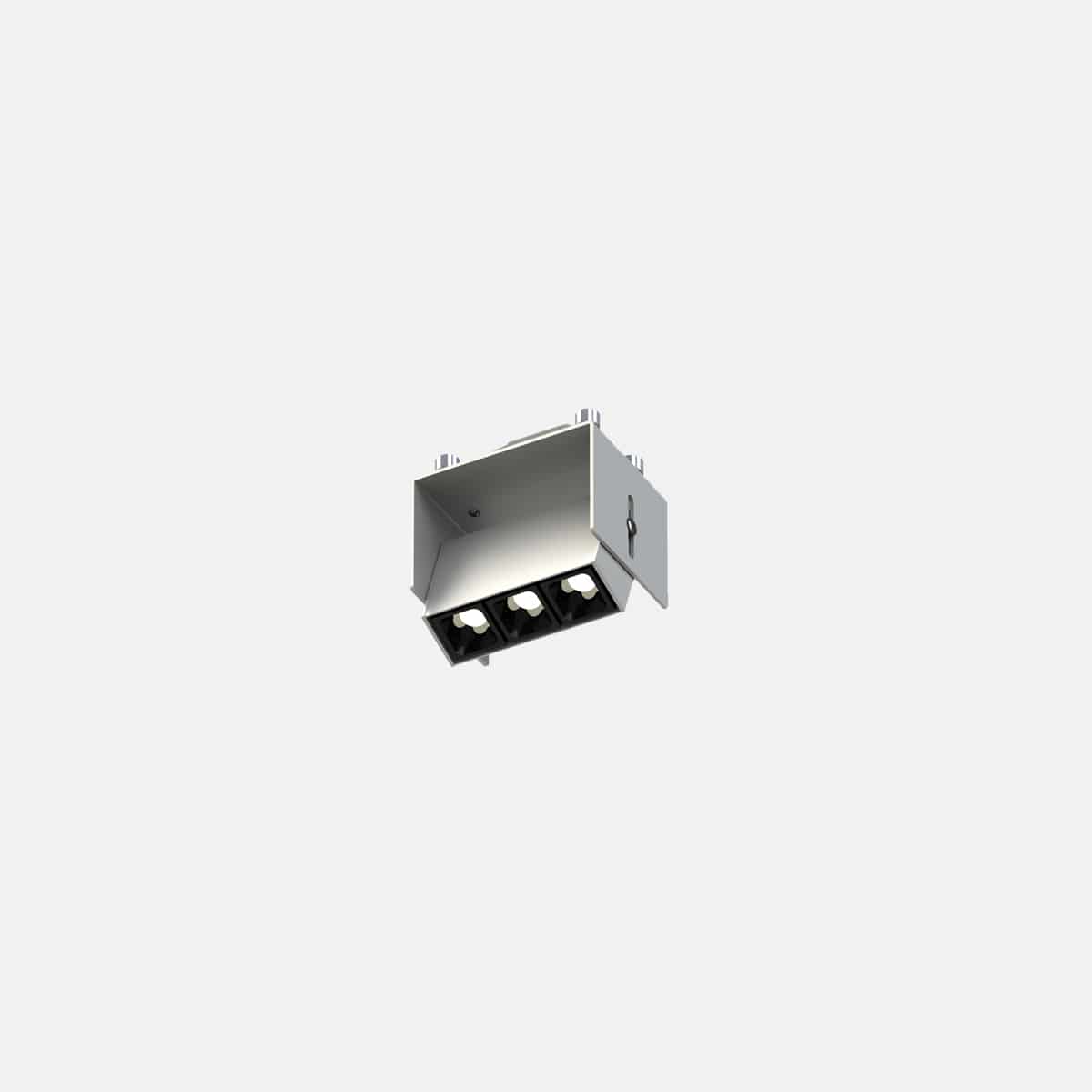

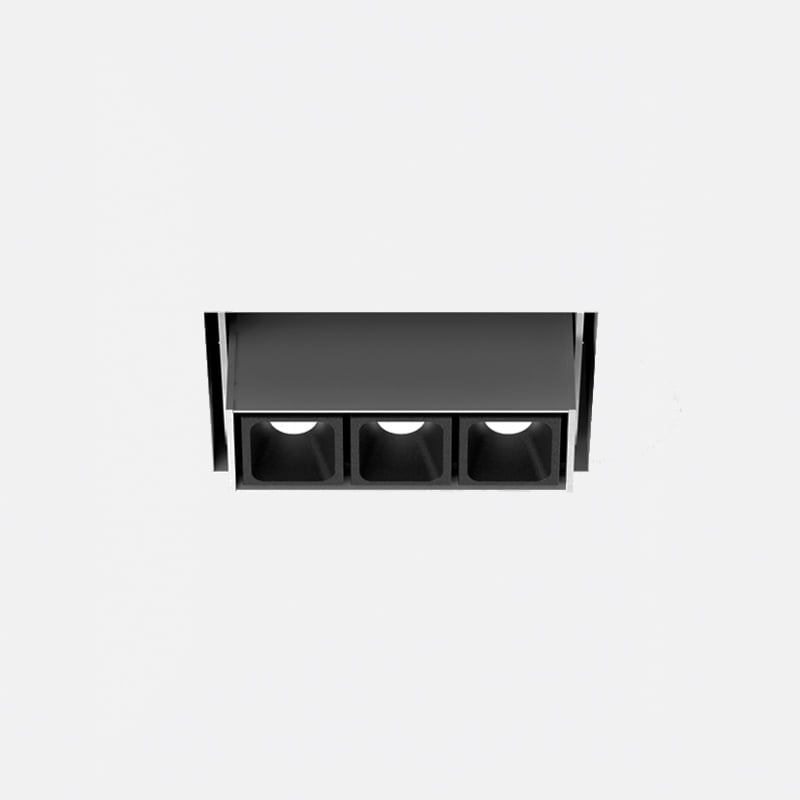

Leva 3 Tilt Version Trimless – kit

The revolution in accent lighting LEVA represents the cutting-edge technology in compact spot lighting today available on the market. It’s made of an extruded aluminum rectangular profile – the fixture’s body – within which are hosted in line a series of optical groups – made of the chip on board led, the lens an the antiglare housing UGR<16 – that… read more

Mandatory accessory according to the type of installation

Light sourceCodePowerColor temp.LumenCRILensProtocolDim
LedLV041K.927S
3x2,2W
2700K
596
>90
Spot 20°On/OffL100Wx75Hx110 mm
LedLV041K.927SD
3x2,2W
2700K
596
>90
Spot 20°DimmableL100Wx75Hx110 mm
LedLV041K.927F
3x2,2W
2700K
553
>90
Flood 32°On/OffL100Wx75Hx110 mm
LedLV041K.927FD
3x2,2W
2700K
553
>90
Flood 32°DimmableL100Wx75Hx110 mm
LedLV041K.927W
3x2,2W
2700K
492
>90
Wide 50°On/OffL100Wx75Hx110 mm
LedLV041K.927WD
3x2,2W
2700K
492
>90
Wide 50°DimmableL100Wx75Hx110 mm
LedLV041K.927Z
3x2,2W
2700K
521
>90
Asymmetric 41°x18°On/OffL100Wx75Hx110 mm
LedLV041K.927ZD
3x2,2W
2700K
521
>90
Asymmetric 41°x18°DimmableL100Wx75Hx110 mm
LedLV041K.930S
3x2,2W
3000K
601
>90
Spot 20°On/OffL100Wx75Hx110 mm
LedLV041K.930SD
3x2,2W
3000K
601
>90
Spot 20°DimmableL100Wx75Hx110 mm
LedLV041K.930F
3x2,2W
3000K
559
>90
Flood 32°On/OffL100Wx75Hx110 mm
LedLV041K.930FD
3x2,2W
3000K
559
>90
Flood 32°DimmableL100Wx75Hx110 mm
LedLV041K.930W
3x2,2W
3000K
497
>90
Wide 50°On/OffL100Wx75Hx110 mm
LedLV041K.930WD
3x2,2W
3000K
497
>90
Wide 50°DimmableL100Wx75Hx110 mm
LedLV041K.930Z
3x2,2W
3000K
526
>90
Asymmetric 41°x18°On/OffL100Wx75Hx110 mm
LedLV041K.930ZD
3x2,2W
3000K
526
>90
Asymmetric 41°x18°DimmableL100Wx75Hx110 mm
LedLV041K.940S
3x2,2W
4000K
615
>90
Spot 20°On/OffL100Wx75Hx110 mm
LedLV041K.940SD
3x2,2W
4000K
615
>90
Spot 20°DimmableL100Wx75Hx110 mm
LedLV041K.940F
3x2,2W
4000K
571
>90
Flood 32°On/OffL100Wx75Hx110 mm
LedLV041K.940FD
3x2,2W
4000K
571
>90
Flood 32°DimmableL100Wx75Hx110 mm
LedLV041K.940W
3x2,2W
4000K
508
>90
Wide 50°On/OffL100Wx75Hx110 mm
LedLV041K.940WD
3x2,2W
4000K
508
>90
Wide 50°DimmableL100Wx75Hx110 mm
LedLV041K.940Z
3x2,2W
4000K
538
>90
Asymmetric 41°x18°On/OffL100Wx75Hx110 mm
LedLV041K.940ZD
3x2,2W
4000K
538
>90
Asymmetric 41°x18°DimmableL100Wx75Hx110 mm
