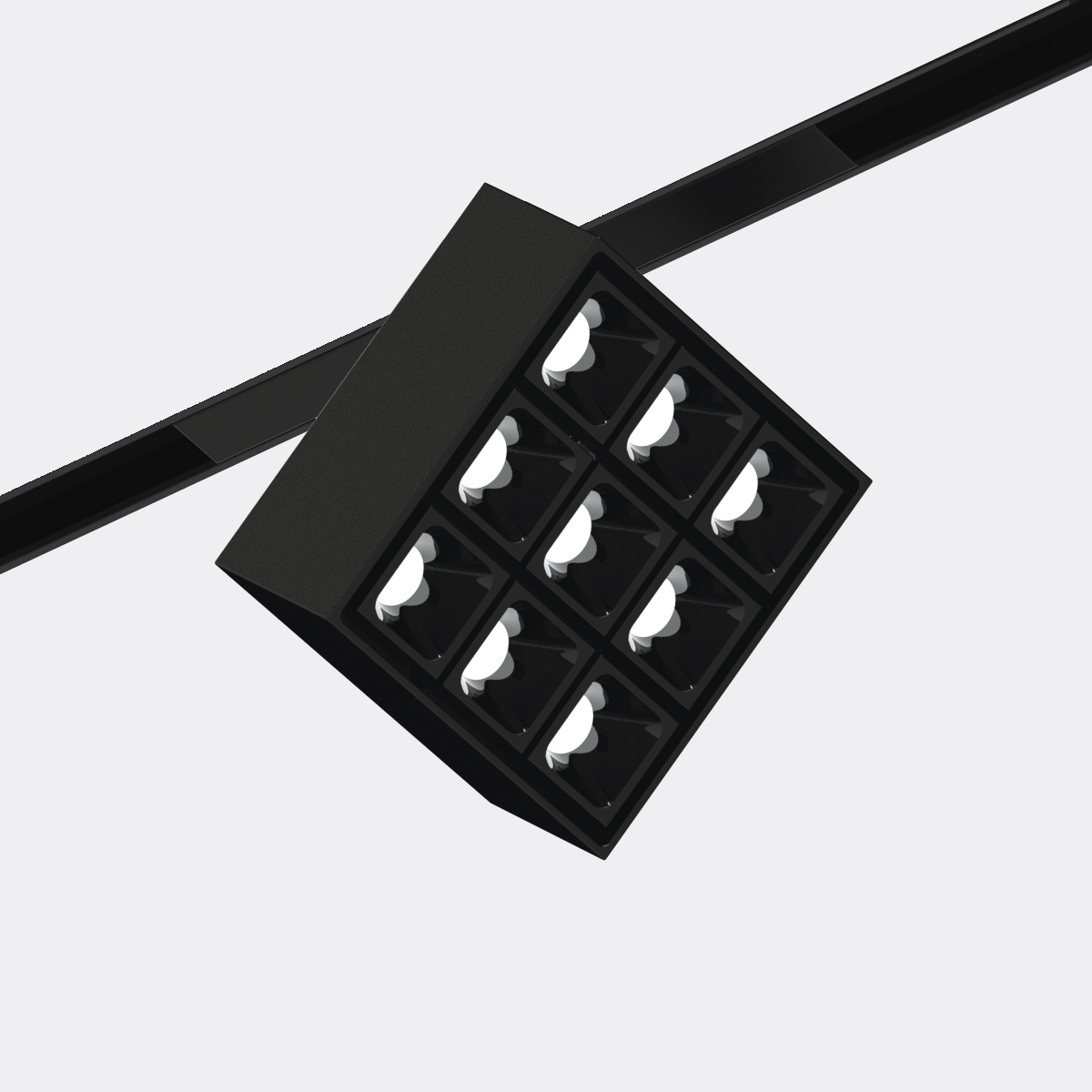

Leva Quadra Mini Track Q9 48V

Fix and adjustable projectors family with chip on board LED sources. Mounting options: recessed, with frame or trimless, ceiling and wall-mounted and on 48V tracks, such as the Multi System by Stucchi. Fixture’s body in painted extruded aluminum. Optical group complete with CRI>90 chip on board led, lens, antiglare housing and electronic driver (except for recessed versions). The optical group… read more

Light sourceCodePowerColor temp.LumenCRILensProtocolDim
LedLV325.927S
9x2,2W
2700K
1783
>90
Spot 20°On/OffL98Wx98Hx60 mm
LedLV325.927SD
9x2,2W
2700K
1783
>90
Spot 20°DimmableL98Wx98Hx60 mm
LedLV325.927F
9x2,2W
2700K
1660
>90
Flood 32°On/OffL98Wx98Hx60 mm
LedLV325.927FD
9x2,2W
2700K
1660
>90
Flood 32°DimmableL98Wx98Hx60 mm
LedLV325.927W
9x2,2W
2700K
1477
>90
Wide 50°On/OffL98Wx98Hx60 mm
LedLV325.927WD
9x2,2W
2700K
1477
>90
Wide 50°DimmableL98Wx98Hx60 mm
LedLV325.930S
9x2,2W
3000K
1800
>90
Spot 20°On/OffL98Wx98Hx60 mm
LedLV325.930SD
9x2,2W
3000K
1800
>90
Spot 20°DimmableL98Wx98Hx60 mm
LedLV325.930F
9x2,2W
3000K
1676
>90
Flood 32°On/OffL98Wx98Hx60 mm
LedLV325.930FD
9x2,2W
3000K
1676
>90
Flood 32°DimmableL98Wx98Hx60 mm
LedLV325.930W
9x2,2W
3000K
1490
>90
Wide 50°On/OffL98Wx98Hx60 mm
LedLV325.930WD
9x2,2W
3000K
1490
>90
Wide 50°DimmableL98Wx98Hx60 mm
LedLV325.940S
9x2,2W
4000K
1842
>90
Spot 20°On/OffL98Wx98Hx60 mm
LedLV325.940SD
9x2,2W
4000K
1842
>90
Spot 20°DimmableL98Wx98Hx60 mm
LedLV325.940F
9x2,2W
4000K
1714
>90
Flood 32°On/OffL98Wx98Hx60 mm
LedLV325.940FD
9x2,2W
4000K
1714
>90
Flood 32°DimmableL98Wx98Hx60 mm
LedLV325.940W
9x2,2W
4000K
1525
>90
Wide 50°On/OffL98Wx98Hx60 mm
LedLV325.940WD
9x2,2W
4000K
1525
>90
Wide 50°DimmableL98Wx98Hx60 mm
